Back to catalog
Highlights
Station Type
integrated
Connectors
2
Max Output Current
500 A
Output Voltage
200 V – 1.000 V
Efficiency
96.2%
IP Rating
IP54

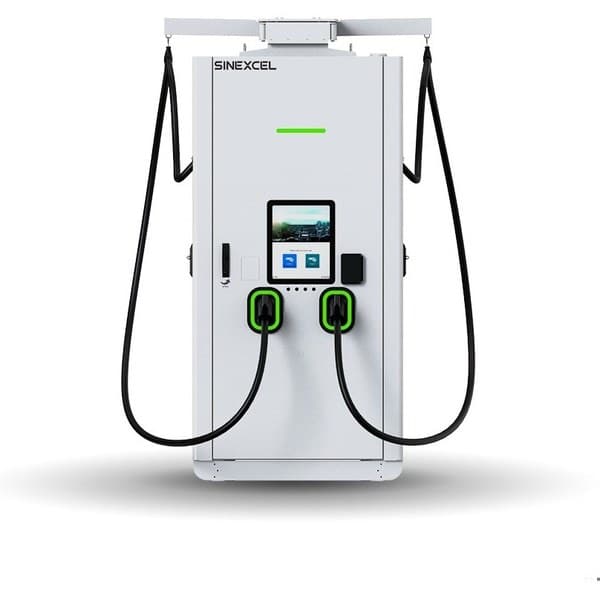

Details about Sinexcel SEC 640kW
Powertrain & Energy
Rated Power
640 kW
Station Type
integrated
Connectors
2
Connector Type
CCS2
Efficiency
96.2%
Input Voltage
400 V
Output Voltage (min)
200 V
Output Voltage (max)
1.000 V
Max Output Current
500 A
Dimensions
Width
990 mm
Depth
990 mm
Height
2.00 m
Weight
850 kg
Other
IP Rating
IP54
Cooling Method
air
Operating Temp (min)
-30°C
Operating Temp (max)
65°C
Communication Protocol
OCPP 1.6J
