Sinexcel

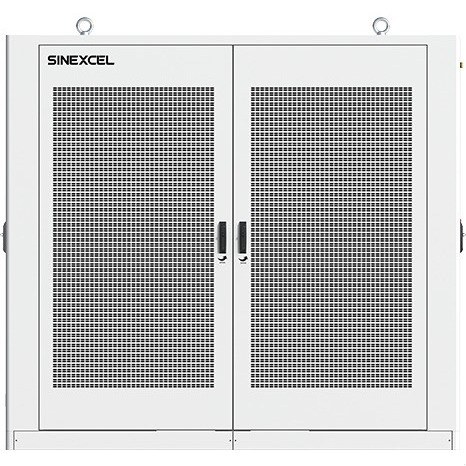

DC Fast CE 1280kW
DC Fast CE
·
Charging Station
Power
1280 kW
Connector
CCS2
Weight
2.0 t
Highlights
Station Type
distributed
Connectors
16
Max Output Current
500 A
Output Voltage
200 V – 1.000 V
Efficiency
96.5%
IP Rating
IP55
Details about Sinexcel DC Fast CE 1280kW
Powertrain & Energy
Rated Power
1.280 kW
Station Type
distributed
Connectors
16
Connector Type
CCS2
Efficiency
96.5%
Input Voltage
400 V
Output Voltage (min)
200 V
Output Voltage (max)
1.000 V
Max Output Current
500 A
Dimensions
Width
2.30 m
Depth
1.10 m
Height
2.10 m
Weight
2.0 t
Other
IP Rating
IP55
Cooling Method
air
Operating Temp (min)
-25°C
Operating Temp (max)
50°C
Communication Protocol
OCPP 1.6J
