Highlights
Station Type
mobile
Connectors
1
Max Output Current
200 A
Output Voltage
200 V – 1.000 V
Efficiency
95%
IP Rating
IP54

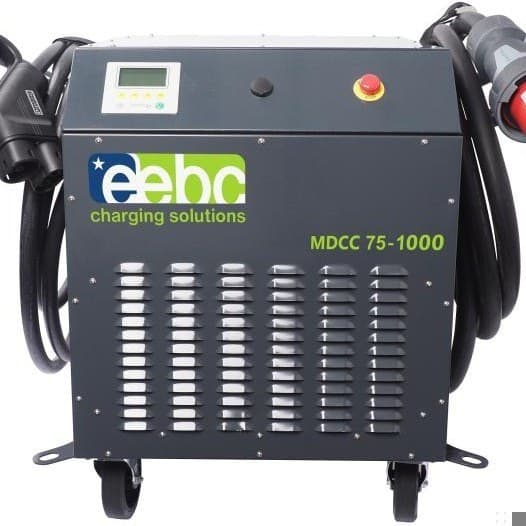

Details about EEBC MDCC 75-1000
Powertrain & Energy
Rated Power
75 kW
Station Type
mobile
Connectors
1
Connector Type
CCS Typ 2
Efficiency
95%
Input Voltage
400 V
Output Voltage (min)
200 V
Output Voltage (max)
1.000 V
Max Output Current
200 A
Dimensions
Width
1.12 m
Depth
800 mm
Height
750 mm
Weight
140 kg
Other
IP Rating
IP54
Cooling Method
Forced Air
Operating Temp (min)
N/A
Operating Temp (max)
N/A
Communication Protocol
OCPP
