Highlights
Station Type
mobile
Connectors
1
Max Output Current
N/A
Output Voltage
150 V – 1.000 V
Efficiency
N/A
IP Rating
IP44

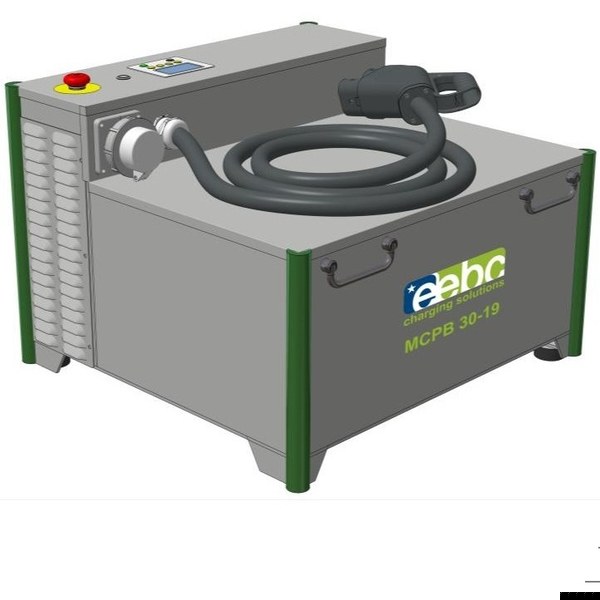

Details about EEBC MCPB 30-19
Powertrain & Energy
Rated Power
30 kW
Station Type
mobile
Connectors
1
Connector Type
CCS Combo-2
Efficiency
N/A
Input Voltage
400 V
Output Voltage (min)
150 V
Output Voltage (max)
1.000 V
Max Output Current
N/A
Dimensions
Width
750 mm
Depth
700 mm
Height
550 mm
Weight
225 kg
Other
IP Rating
IP44
Cooling Method
Active Air
Operating Temp (min)
-5°C
Operating Temp (max)
40°C
Communication Protocol
N/A
