EEBC

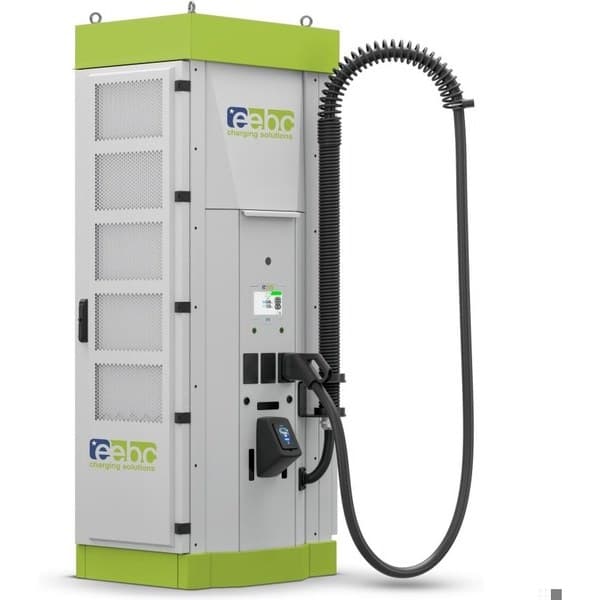

C-Station SDCC 150
C-Serie
·
Charging Station
Power
150 kW
Connector
CCS Combo-2
Weight
—
Highlights
Station Type
integrated
Connectors
2
Max Output Current
200 A
Output Voltage
200 V – 920 V
Efficiency
95%
IP Rating
IP54
Details about EEBC C-Station SDCC 150
Powertrain & Energy
Rated Power
150 kW
Station Type
integrated
Connectors
2
Connector Type
CCS Combo-2
Efficiency
95%
Input Voltage
400 V
Output Voltage (min)
200 V
Output Voltage (max)
920 V
Max Output Current
200 A
Dimensions
Width
710 mm
Depth
870 mm
Height
2.20 m
Weight
N/A
Other
IP Rating
IP54
Cooling Method
Forced Air
Operating Temp (min)
N/A
Operating Temp (max)
N/A
Communication Protocol
OCPP 1.6 / 2.0.1
