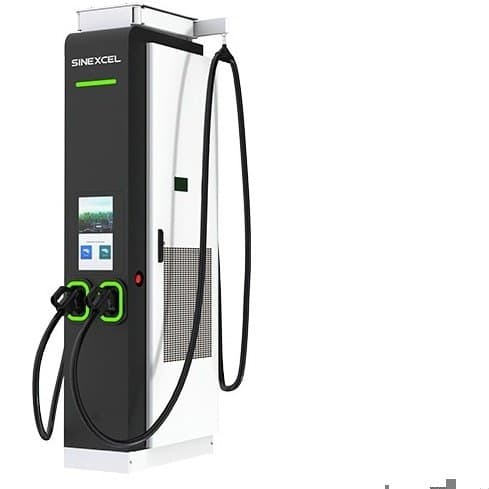

Sinexcel
SEC 640kW Dispenser
SEC
·
Charging Dispenser
Power
640 kW
Connector
CCS2
Weight
270 kg
Highlights
Dispenser Type
Satellite Air
Connectors
2
Cable Length
5 m
Max Output Current
500 A
Efficiency
N/A
IP Rating
IP55
Details about Sinexcel SEC 640kW Dispenser
Powertrain & Energy
Rated Power
640 kW
Dispenser Type
Satellite Air
Connectors
2
Connector Type
CCS2
Cable Length
5 m
Efficiency
N/A
Max Output Current
500 A
Dimensions
Width
450 mm
Depth
800 mm
Height
2.10 m
Weight
270 kg
Other
IP Rating
IP55
Cooling Method
air
Operating Temp (min)
-25°C
Operating Temp (max)
50°C
Communication Protocol
OCPP 1.6J
